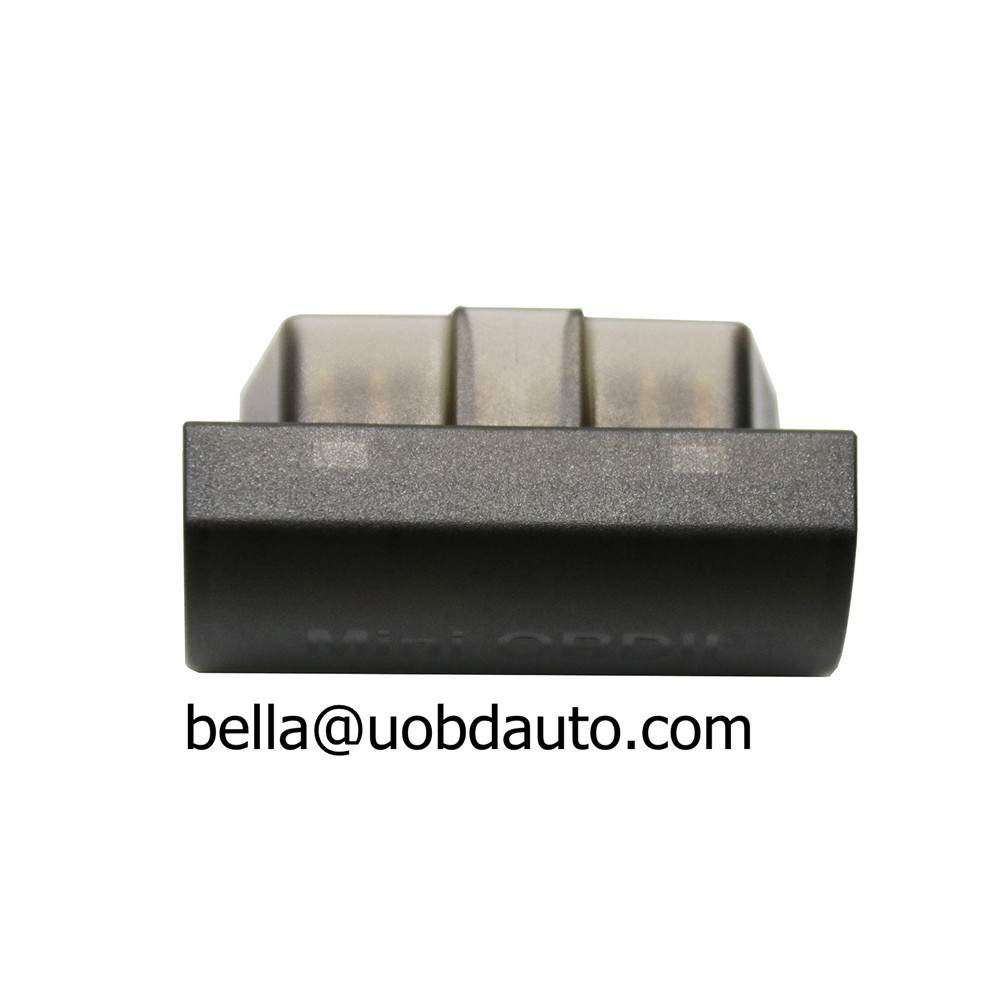

dual mode 2.0 / 4.0 Android / Windows / iOS bluetooth 4.0 mini elm bluetooth support 500 Kbaud Android / Windows / iOS CE, FCC, RoHS certification standards super working newest

New bluetooth 4.0 mini elm bluetooth dual mode 2.0 / 4.0 support 500 Kbaud Android / Windows / iOS  CE, FCC, RoHS certification standards super working newest from bella@Uobdauto.com

Communication: Bluetooth 4.0

Main master chip: ST
Software platform: Support Android / Windows / iOS
Working voltage: 9V ~ 16V
Working current: 35mA Standby current: 25mA
Operating temperature: -40 ℃ ~ 85 ℃ Operating humidity: less than 60%
Product Size: 43mm * 25mm * 23mm

Small size, the highest chip integration, with independent appearance patents, utility model patents and software copyrights. Through the CE, FCC,
RoHS certification.

Mini OBDII Supported Protocols:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2 (5 baud init, 10.4 Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

1. Compatible software Window version: ScanMaster-ELM, ScanTool.net, PCMSCAN, etc;
Android version: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBDII, EOBD, etc;
iOS Version: Auto Doctor, Mini OBDII Saipan Version: OBDScope.
2. Compatible platform
Software support platform: Windows XP, Windows 7/8, Android, Symbian and other systems.
