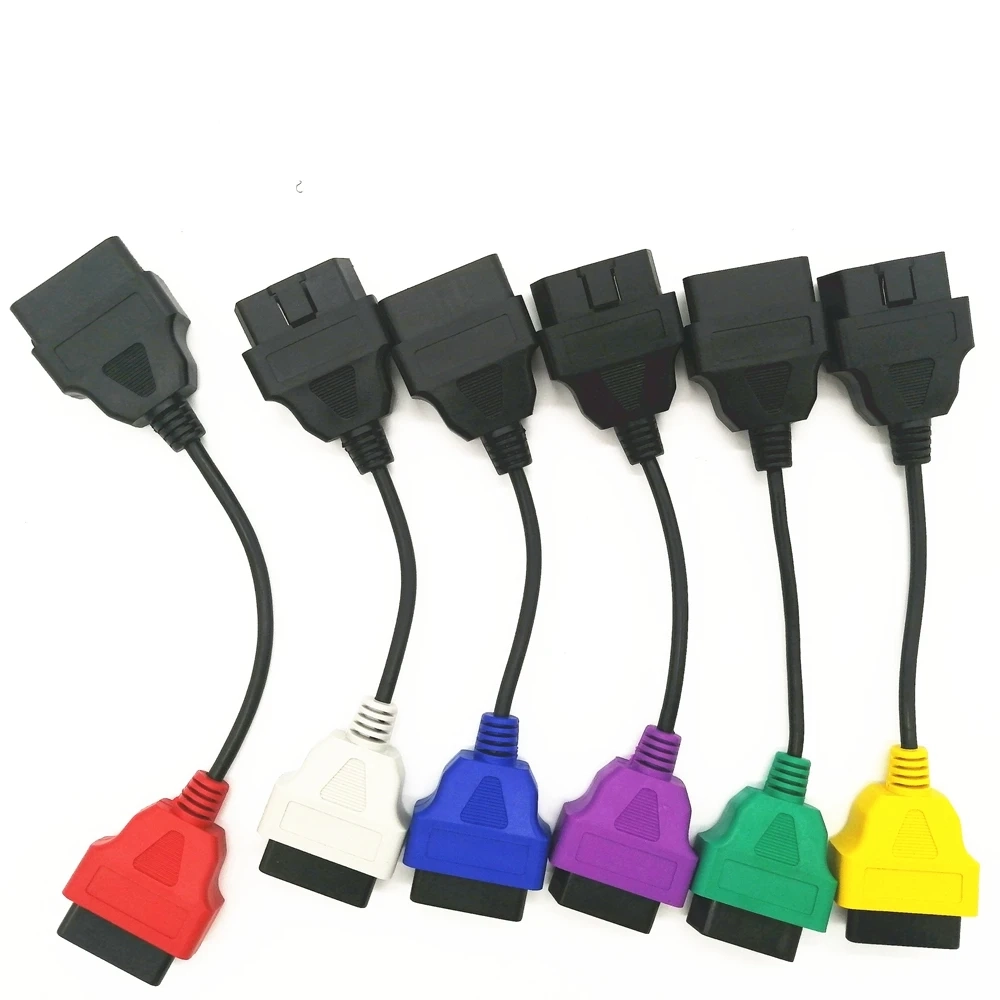

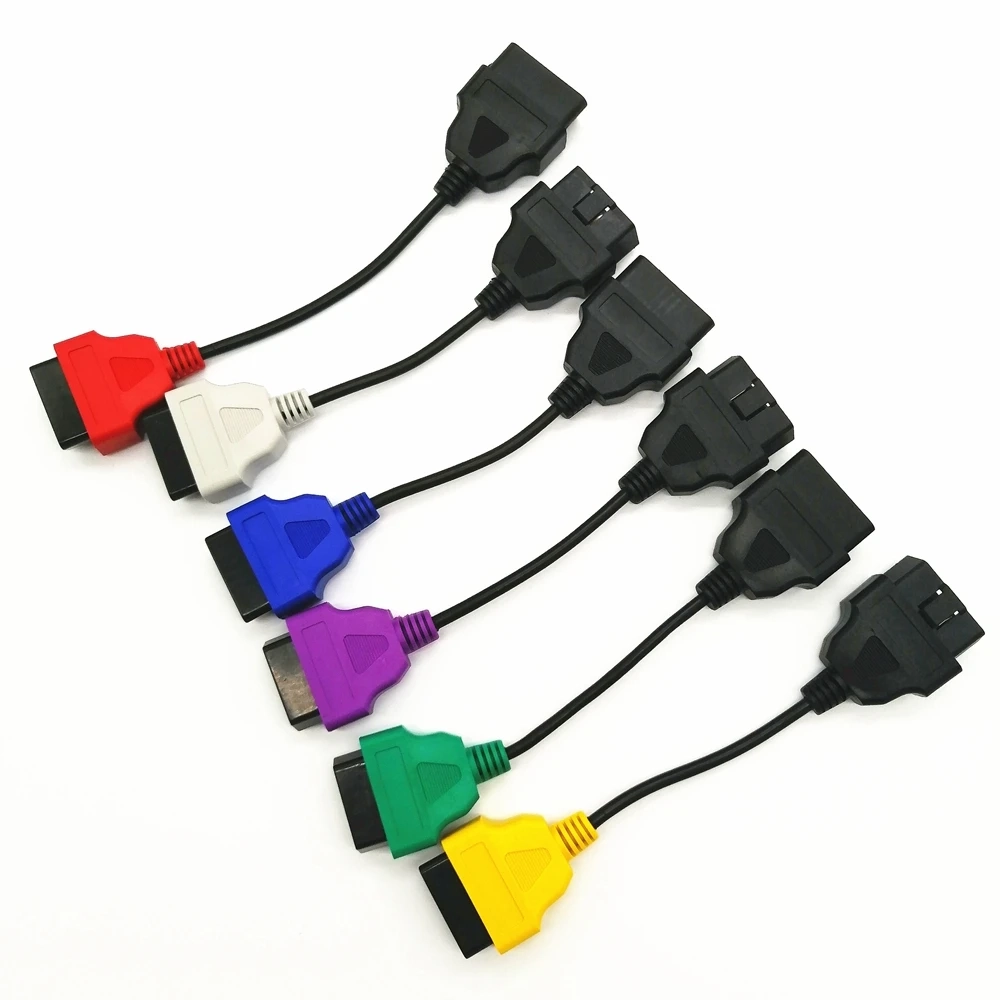

OBD 6 colors cable set or FiatECUScan Adapter OBD2 Connector for MultiECUScan cable set

OBD 6 colors cable set or FiatECUScan Adapter OBD2 Connector for MultiECUScan cable set

Description：

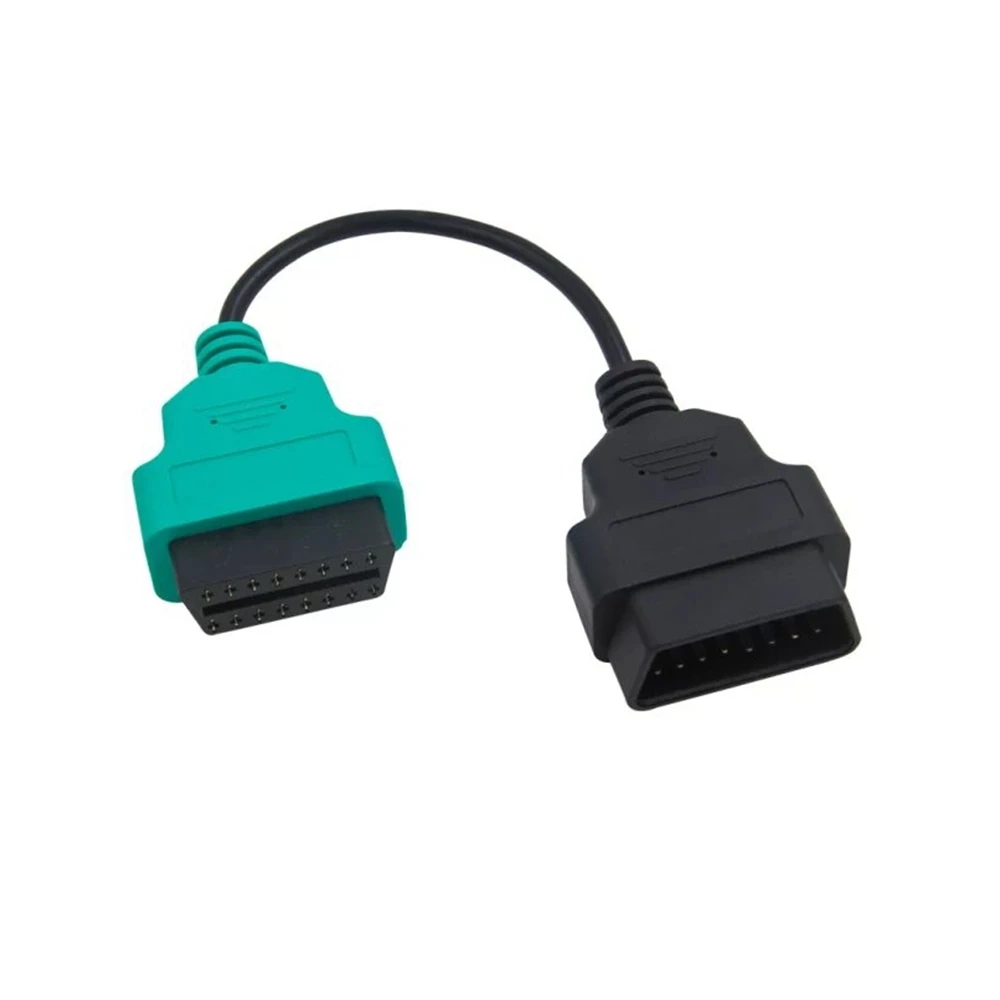

1.Green ABS / Power Sreeing adapter lead ( “Adapter 1” on MultiECUScan website)

-Designed to allow access to the ABS and Power Steering systems on supported vehicles. This adapter has a green connector on one end for easy identification.

Using this adapter, Pin 7 on the diagnostic tool is connected to Pins 1,7,9 & 12 on the car.

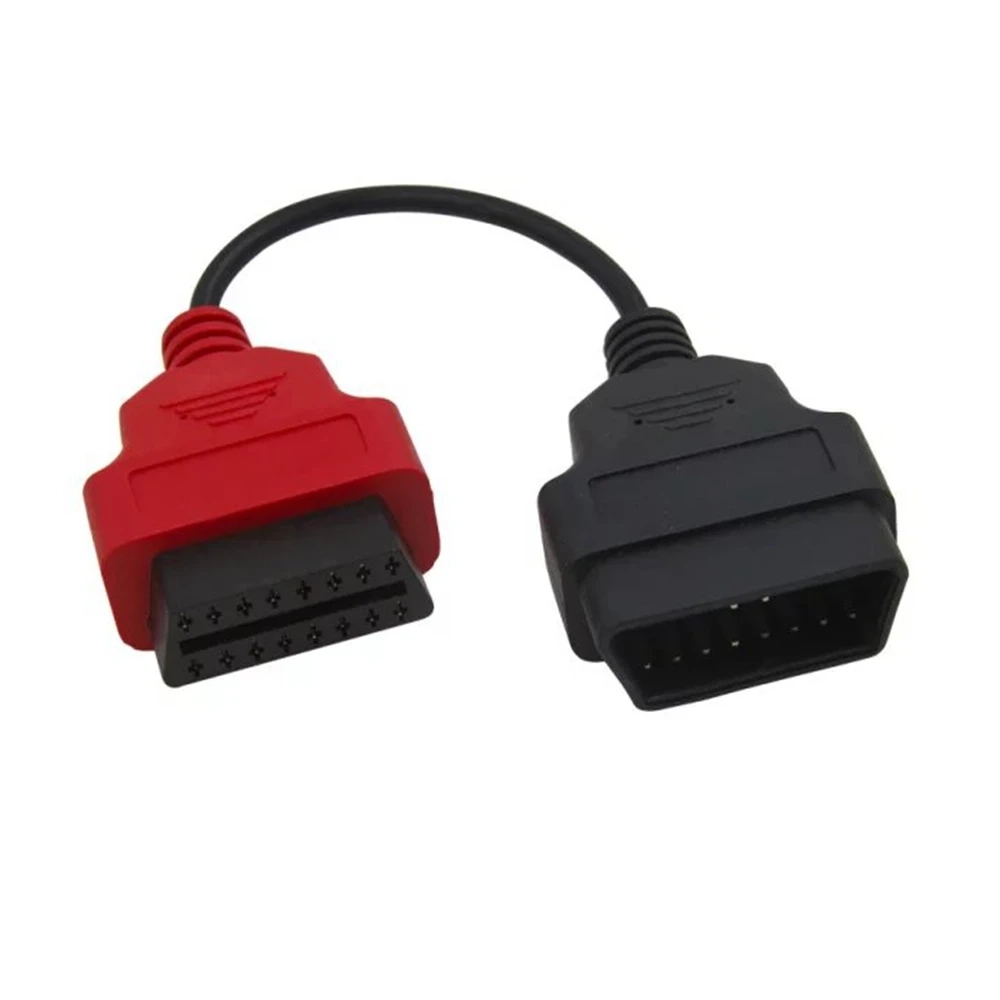

2.Red Airbag adapter lead ( “Adapter 2” on MultiECUScan website)

-Designed to allow access to the Airbag system on supported vehicles.

This adapter has a red connector on one end for easy identification.

Using this adapter, Pin 7 on the diagnostic tool is connected to pin 3 only pn the car.

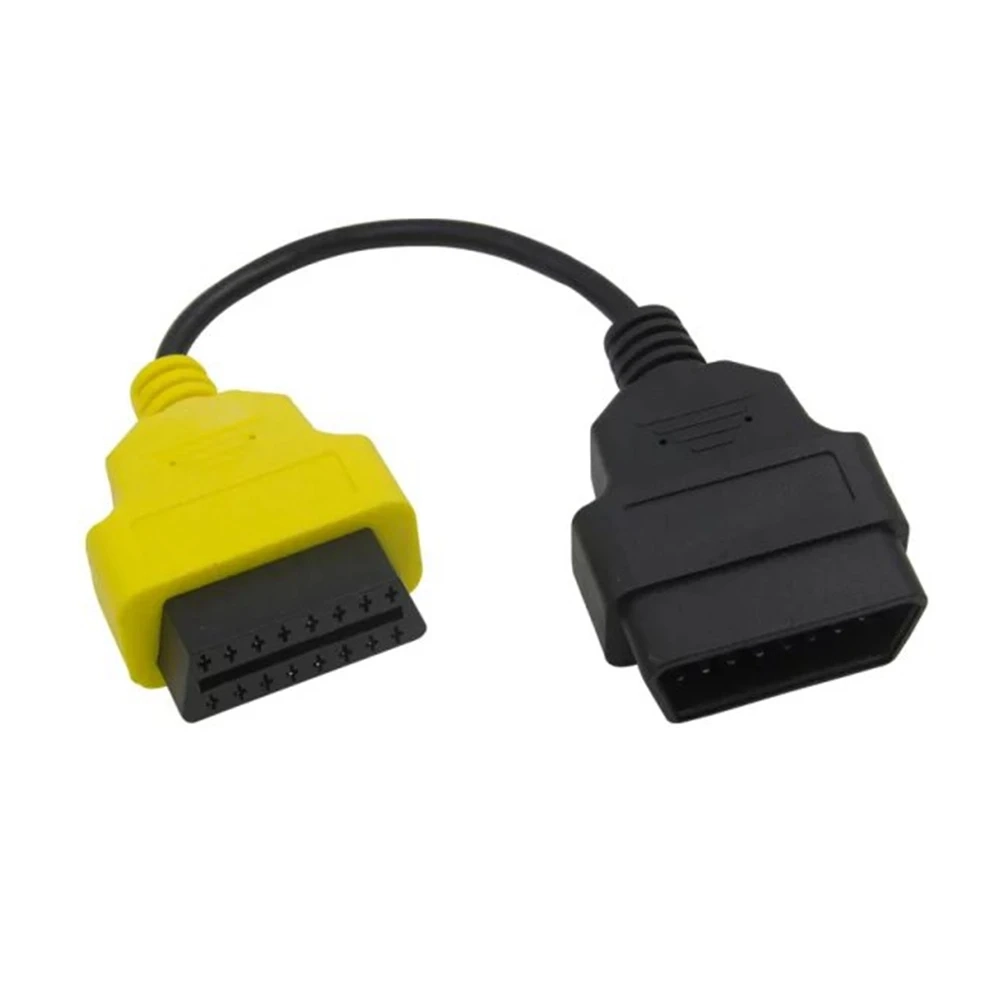

3.Yellow CAN adapter lead ( “Adapter 3” on MultiECUScan website)

-Designed to allow access to the low-speed CAN system on supported vehicles.

This adapter has a yellow connector on one end for easy identification.

Using this adapter, Pin 6 & 14 on the diagnostic tool are connected to pins 1 & 9

Respectively on the car, Pin 7 on the diagnostic tool is connected to pin 12 on the car.

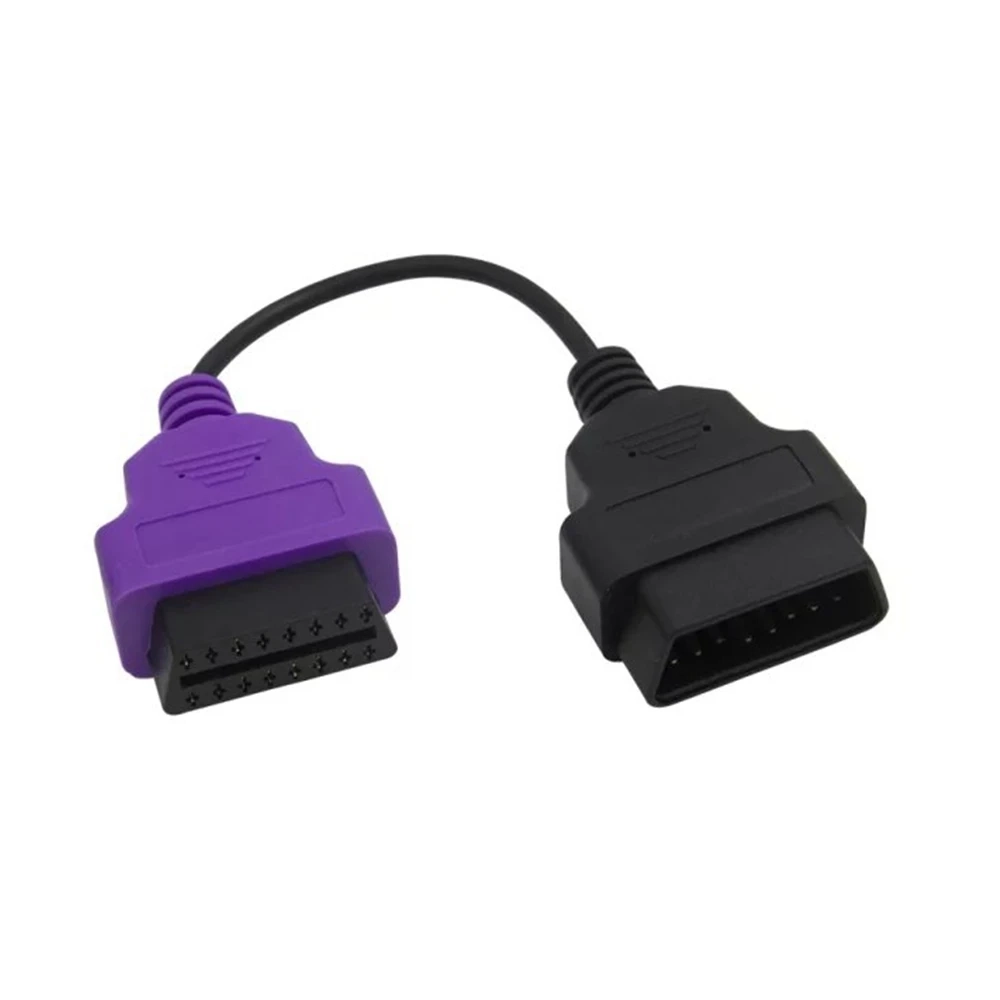

4.Purple Electric hood adapter lead ( “Adapter 4” on MultiECUScan website)

-Designed to allow access to the electric hood system on supported vehicles.

This adapter has a purple connector on the end for easy identification.

Using this adapter, Pin 7 on the diagnostic tool is connected to pins 7,8,11 & 13 one the car.

5.Blue Control Module Adapter Wire Design allows access to enhanced features on the vehicle (eg, multimedia, blind spot sensors, etc.)

6.Gray base control module adapter wire designed to allow access to basic functions on the vehicle (eg headlights, parking controller, ABS, electric steering, etc.)







Note:

We only provide hardware (without software). If you need software :” FiatECUscan” or “MulitECUscan” , please go to the official website to buy it.

Product appearance is for reference only, subject to the actual product

Designed to meet the requirements of the Multiecuscan diagnostic system, the product is perfectly compatible with the Multiecuscan/FiatECUScan.
