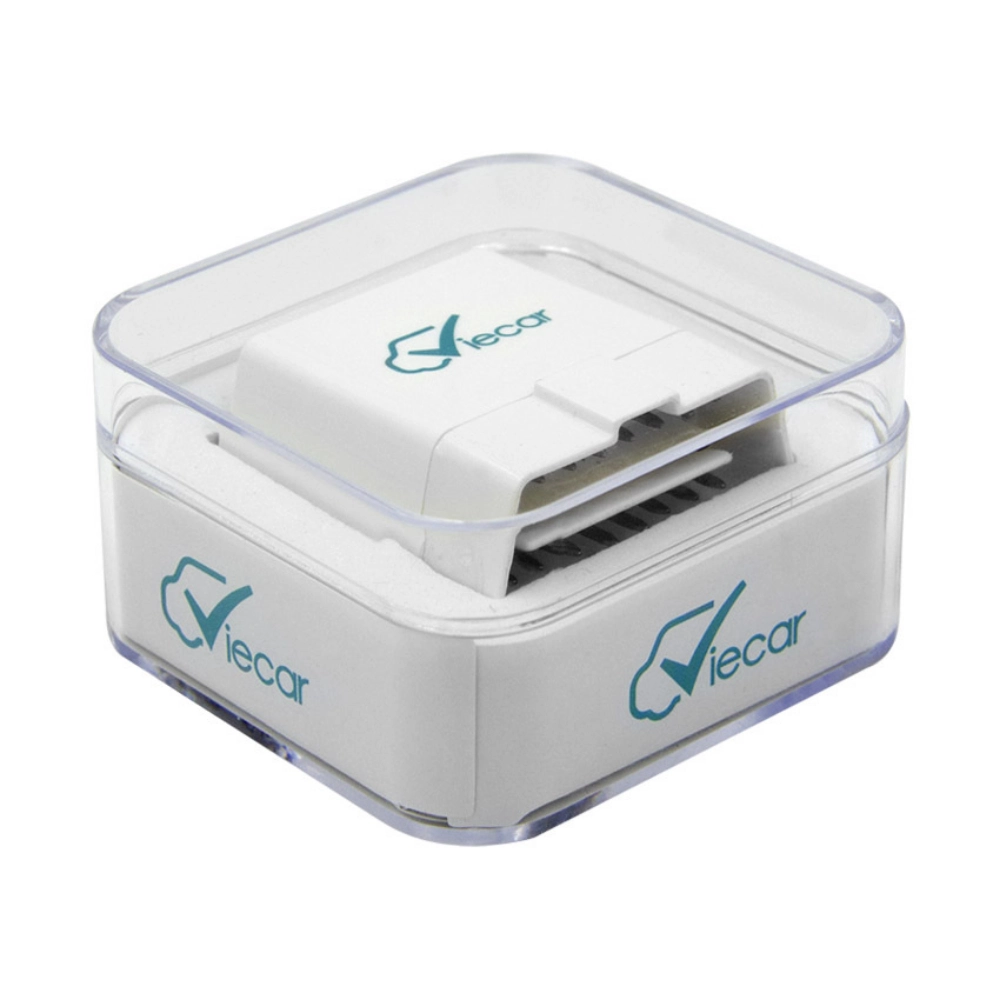

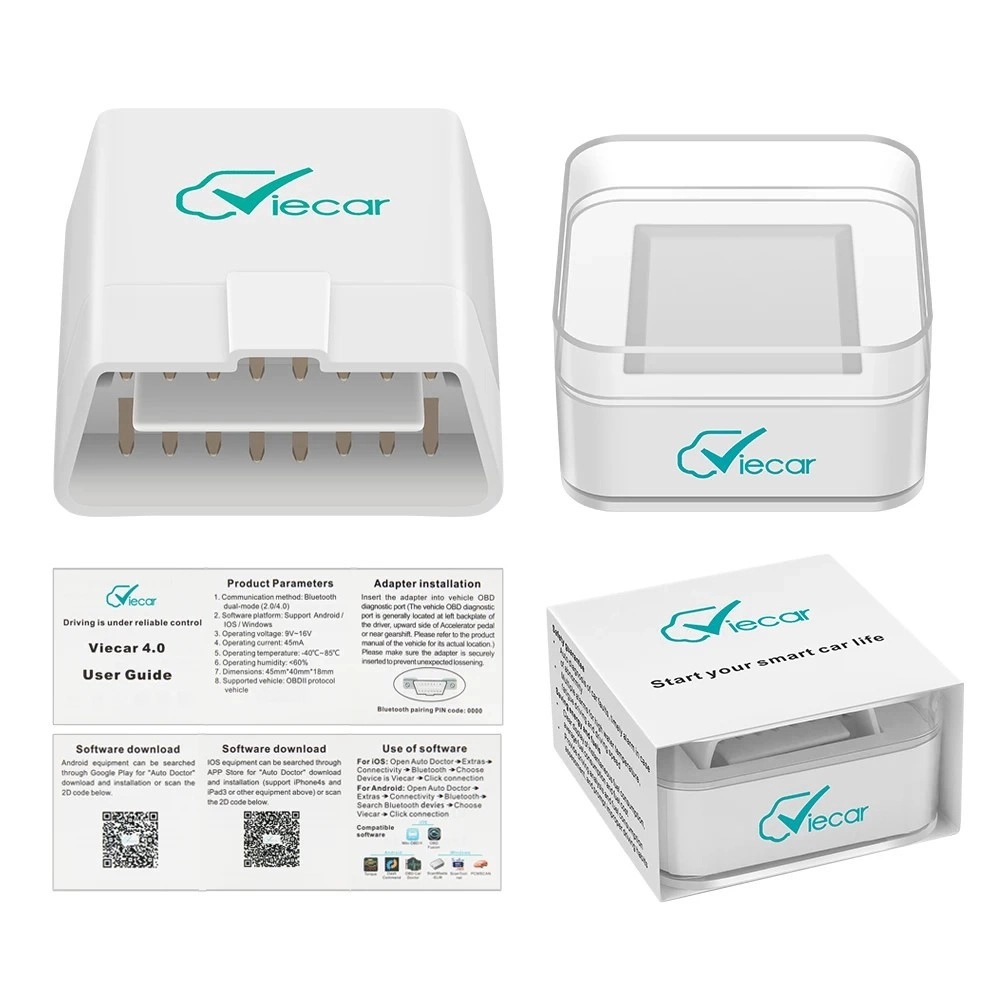

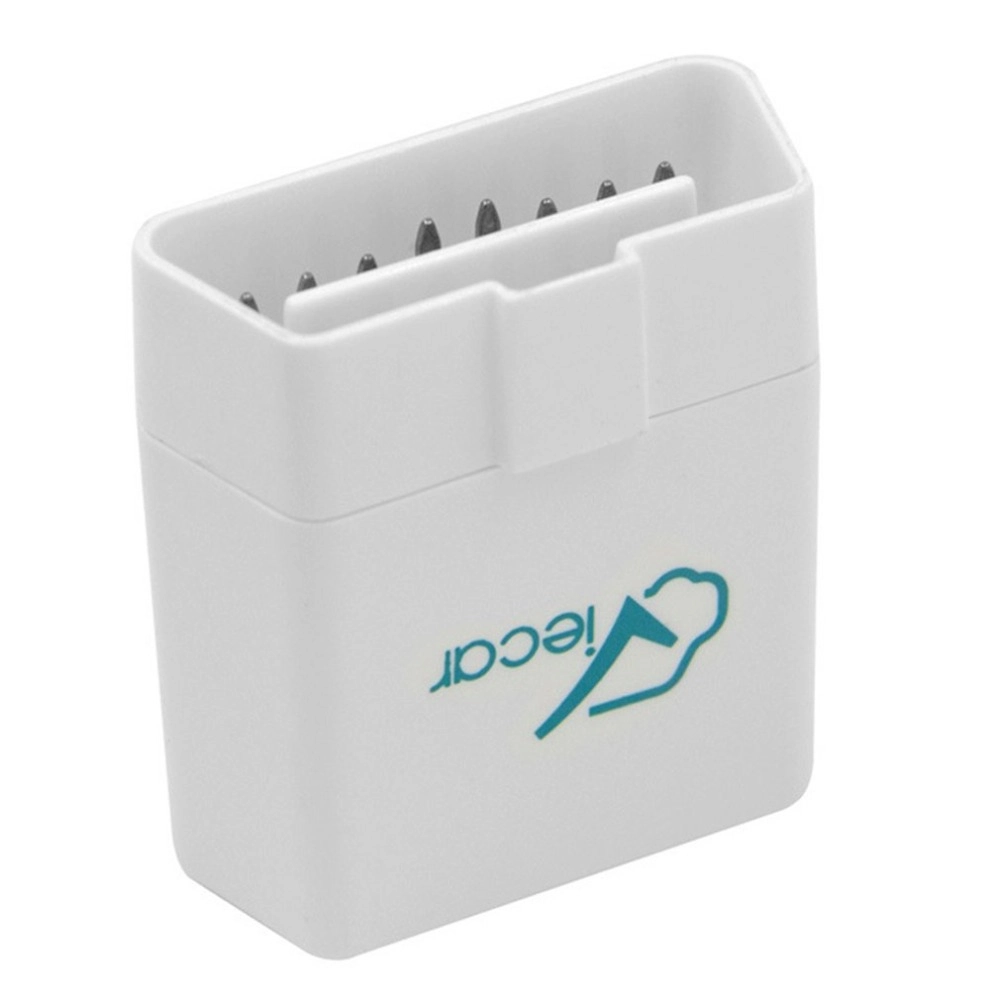

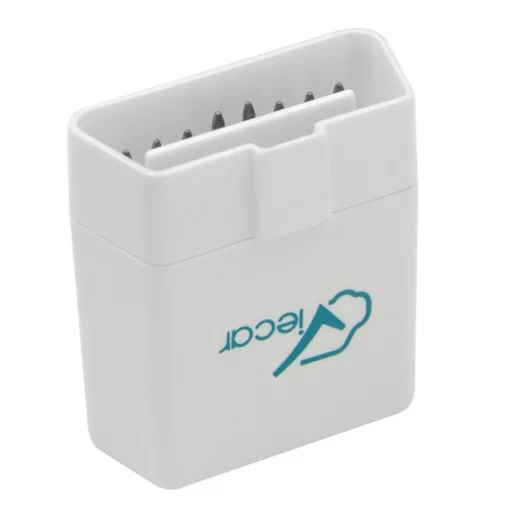

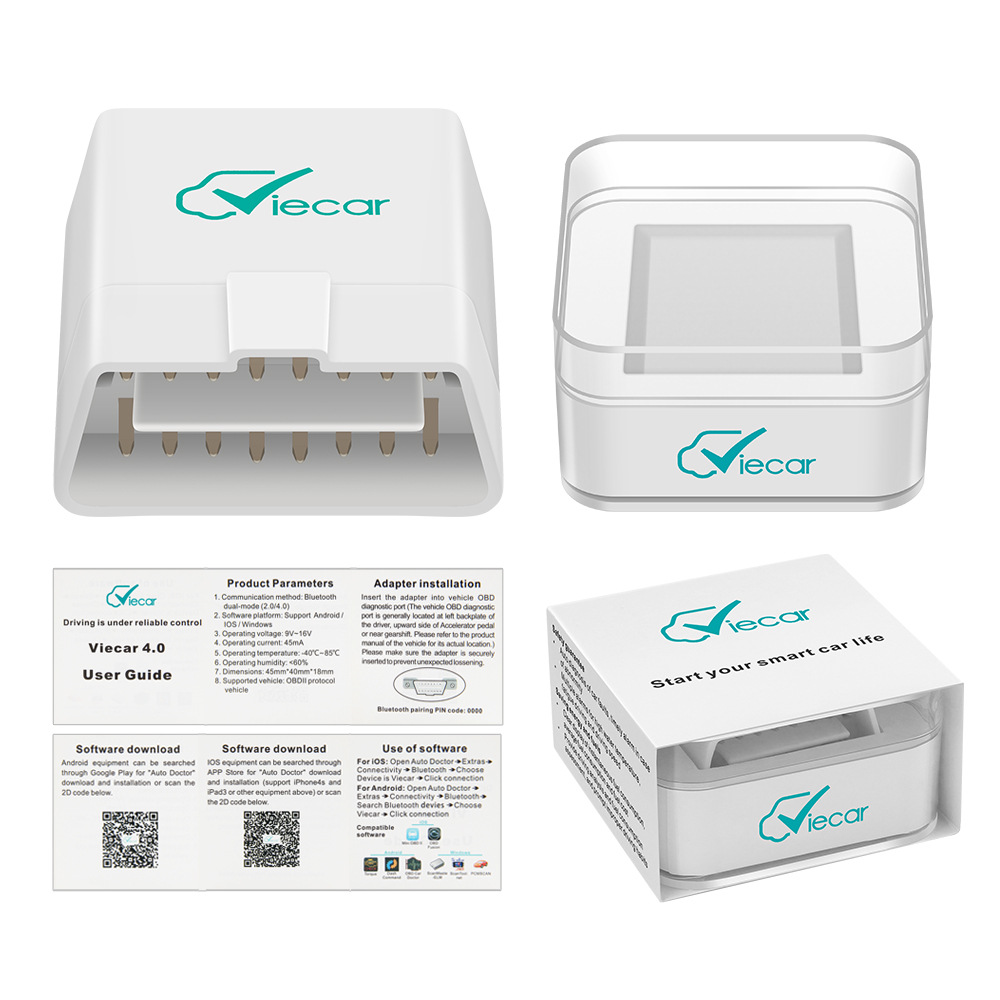

Viecar 4.0 ELM327 Bluetooth V1.5 OBD Car Diagnostic Tool

Viecar 4.0 ELM327 V1.5 Bluetooth-Compatible For IOS Android

AER ELM 327 WIFI BT 25K80 OBD2 Diagnostic Scanner Code Reader Free Ship

1.Description Part Of Original Viecar 4.0 BT ELM327 25K80 :

Attention For Viecar 4.0 :

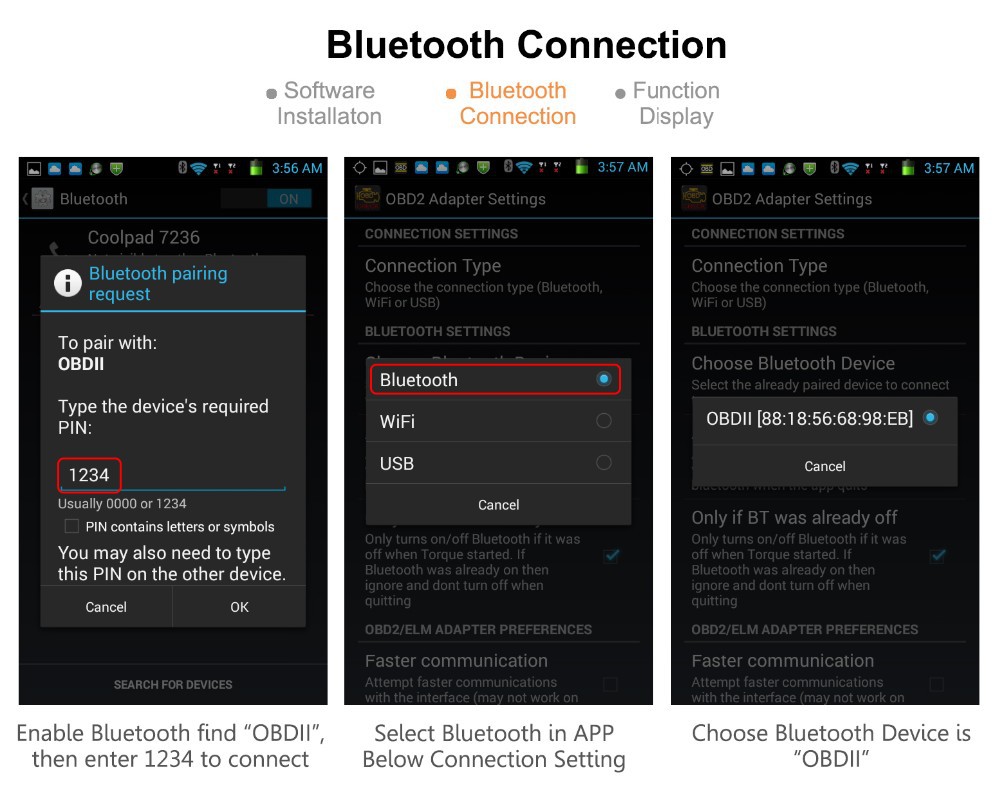

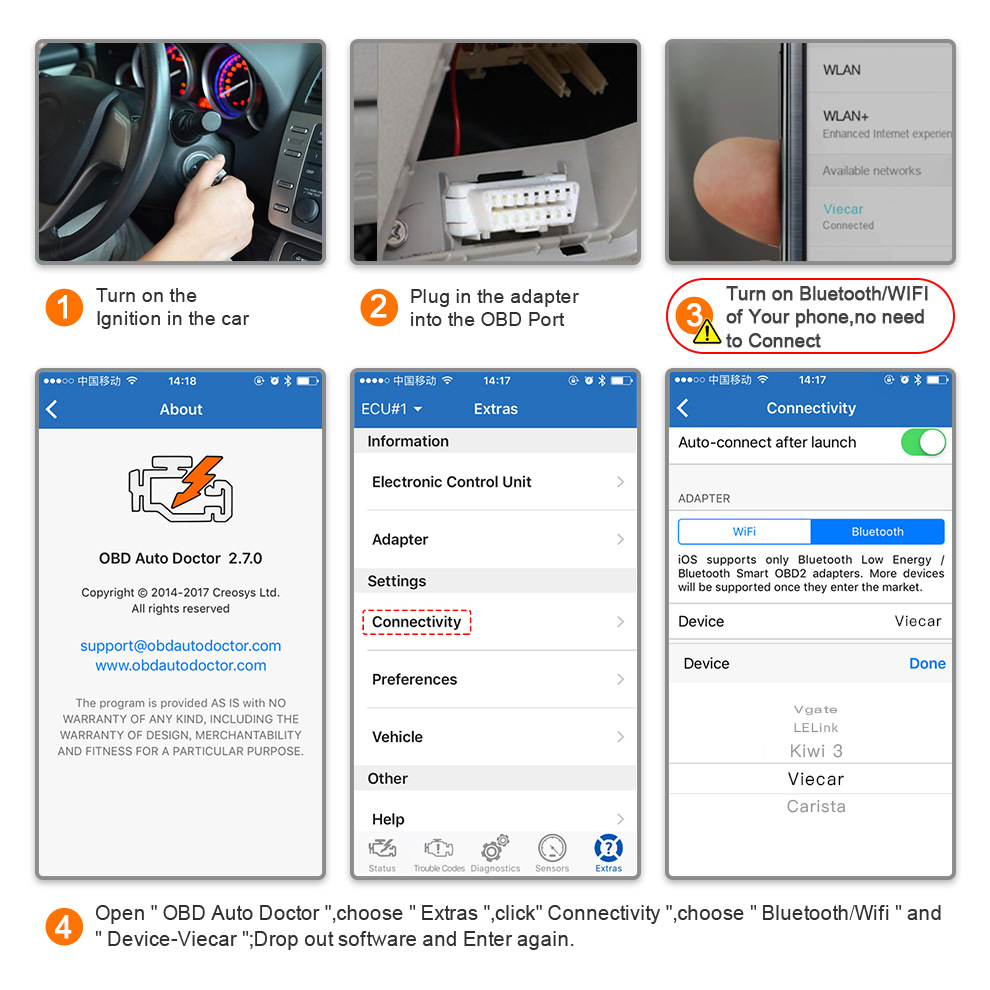

Some customers have feedback that our products will not connect IOS/Android via bt,please Remember the connection method, because the BT connection is different from normal BT.

1.Open the BT first(But please do not connect the product to the BTpage of your phone,this way is wrong)

2.Open the software(like AUTO Doctor)

3.Open the software’s adapter settings page

4.Connect BT in the settings page,then close the software,then reopen again,Everything will be ok 详情图片_02.jpg

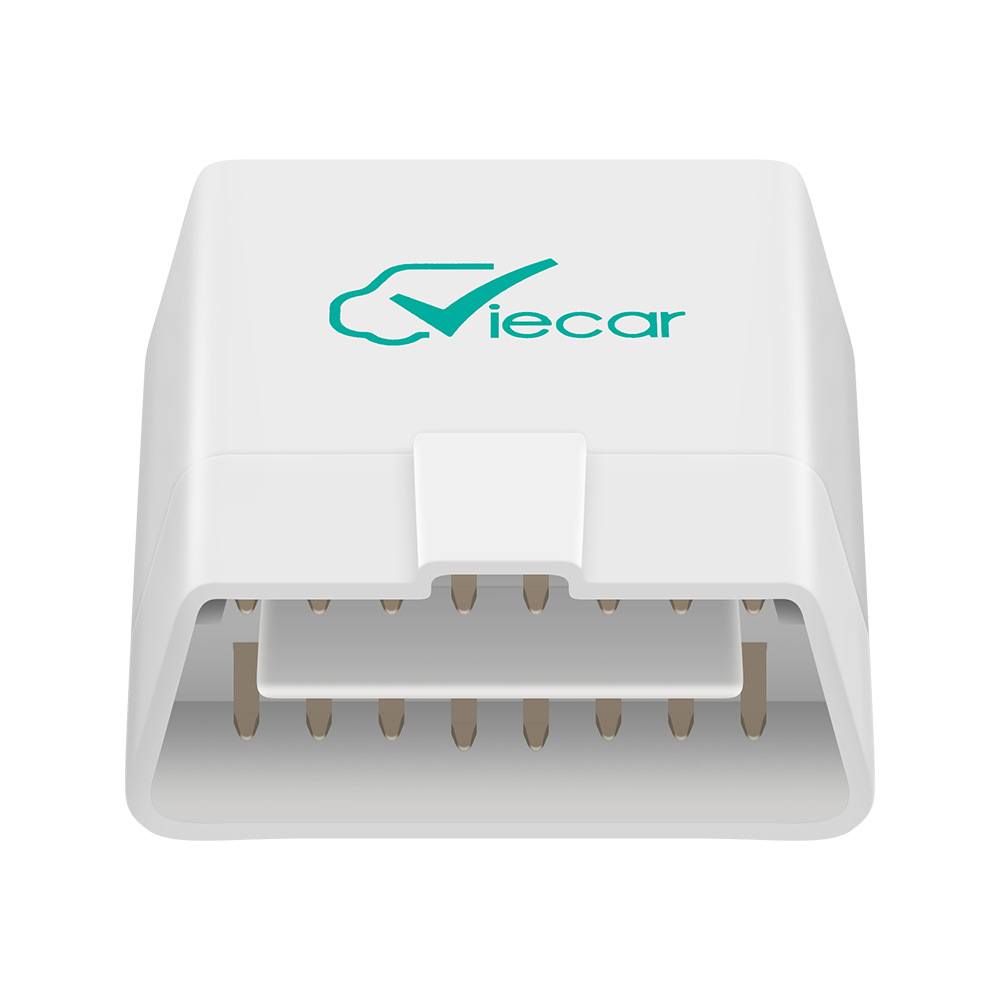

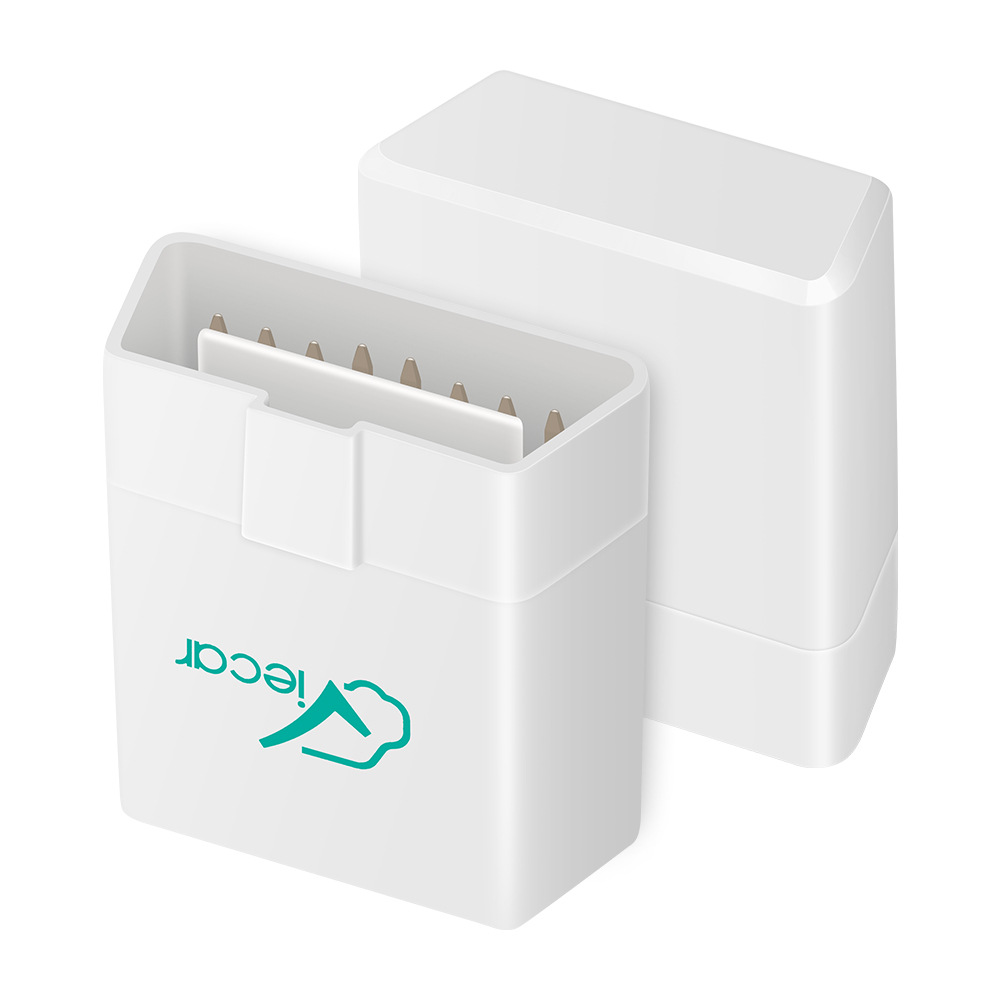

Viecar 4.0 introduction:

Viecar 4.0 is a “software + hardware” multi-functional, comprehensive in-vehicle high-tech automotive electronics products, using BT 4.0 dual-mode design, perfectly support IOS and Android devices and high-speed data transmission, along with low power consumption, really save power. Via connecting with in-vehicle ECU computer to achieve interface 360 degree experience of whole car, early find vehicle Sub-health, also ensures vehicle in warranty early find fault so that promptly take appropriate measures, protect the interests of the owners ; by analyzing and assessing for this time and historical and other multi-dimensional fuel consumption, help car owners saving fuel even money; also recording driving behavior, analyzing condition data, recommending for improvement, and promptly correcting bad driving habits, in order to drivers can be more humane to use their own car.

Viecar 4.0 is no longer simply a screen information display system, but through stunning head-up display (HUD), let drivers no longer have to bow to watch the meter, while enjoying the pilot driving experience, and eliminating the potential safety problems from bowing to watch meter. Cool real-time dashboard design, extended original car without display data; very largely enhance the visual experience.

Product Parameters:

1. Communication method: BT dual-mode (2.0/4.0)

2. Software platform: Support Android / IOS / Windows

3. Operating voltage: 9V~16V

4. Operating current: 45mA

5. Operating temperature: -40℃~85℃

6. Operating humidity: <60%

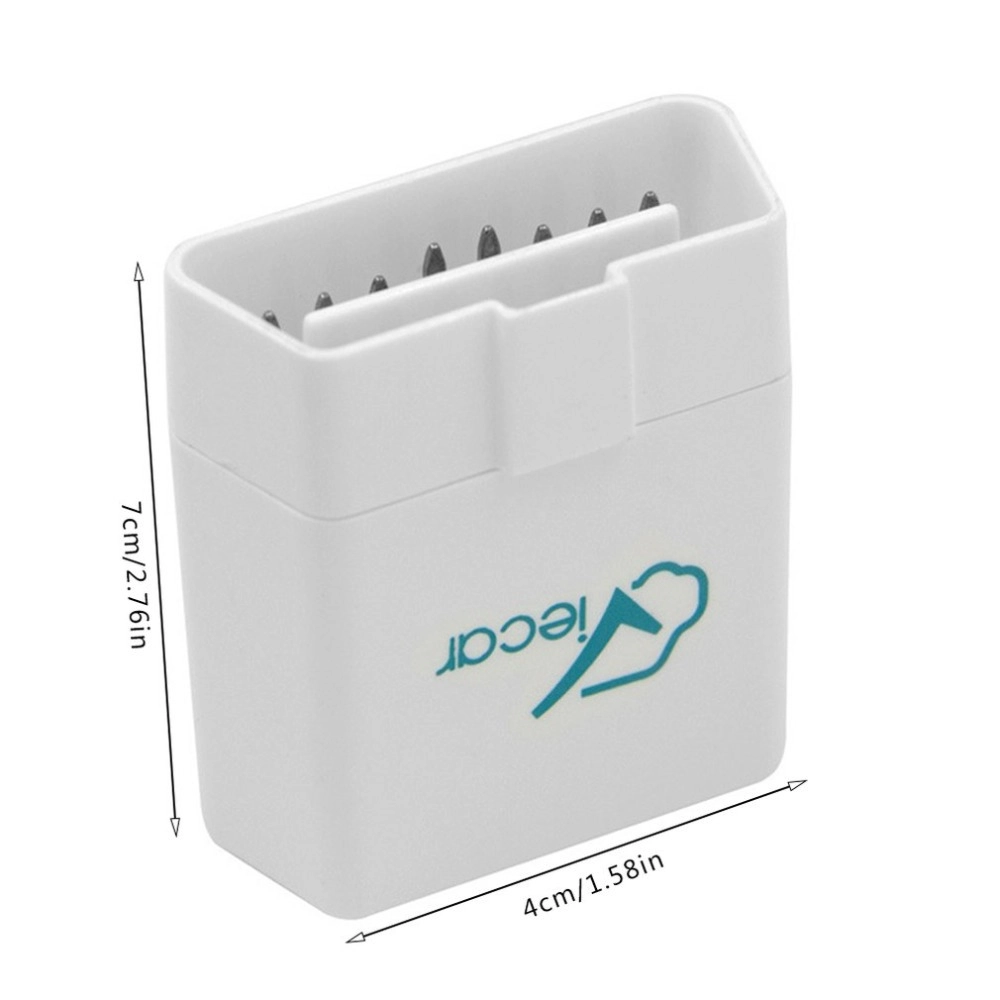

7. Dimensions: 45mm*40mm*18mm

8. Supported vehicle: OBDII protocol vehicle

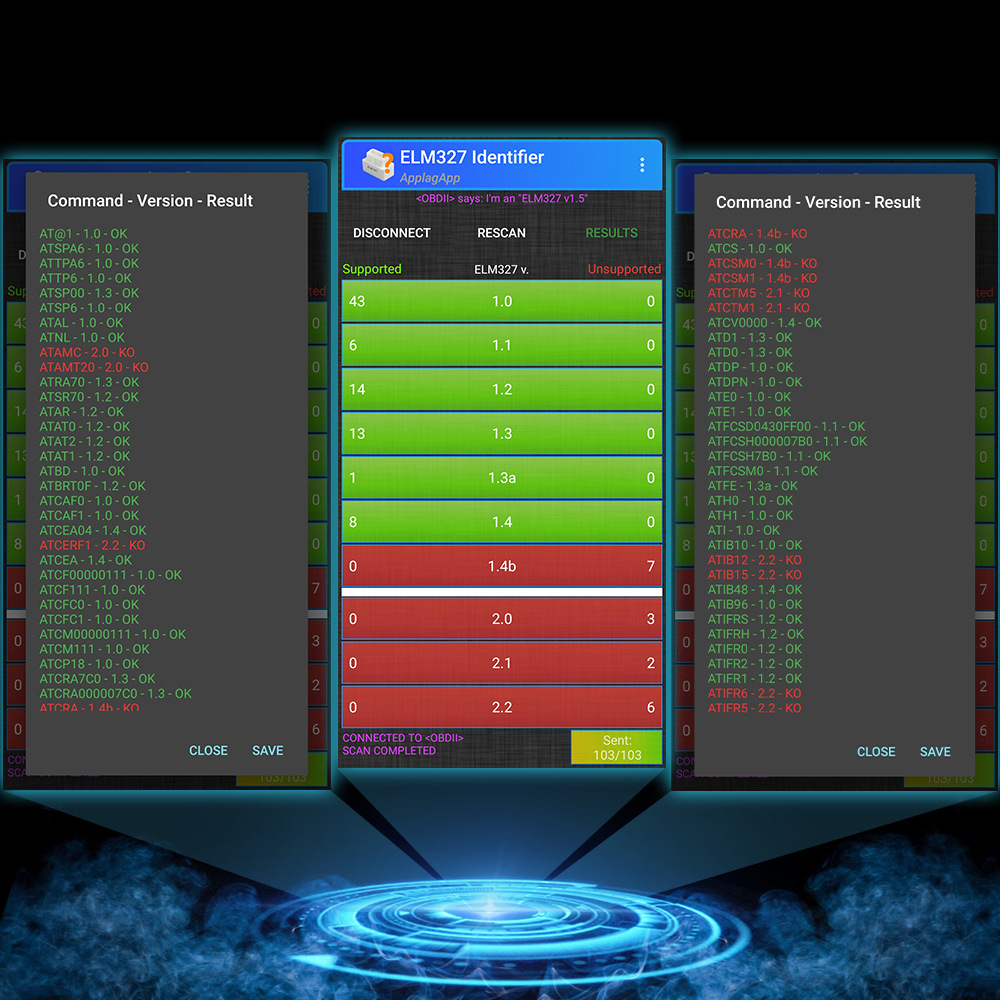

3. Hardware Version V1.5 with real PIC18F25K80 Chips 详情图片_03.jpg

Supports all OBD-II protocols:

SAE J1850 PWM (41.6 Kbaud)

SAE J1850 VPW (10.4 Kbaud)

ISO 9141-2 (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (fast init, 10.4 Kbaud)

ISO15765-4 CAN (11bit ID, 500 Kbaud)

ISO15765-4 CAN (29bit ID, 500 Kbaud)

ISO15765-4 CAN (11bit ID, 250 Kbaud)

ISO15765-4 CAN (29bit ID, 250 Kbaud)

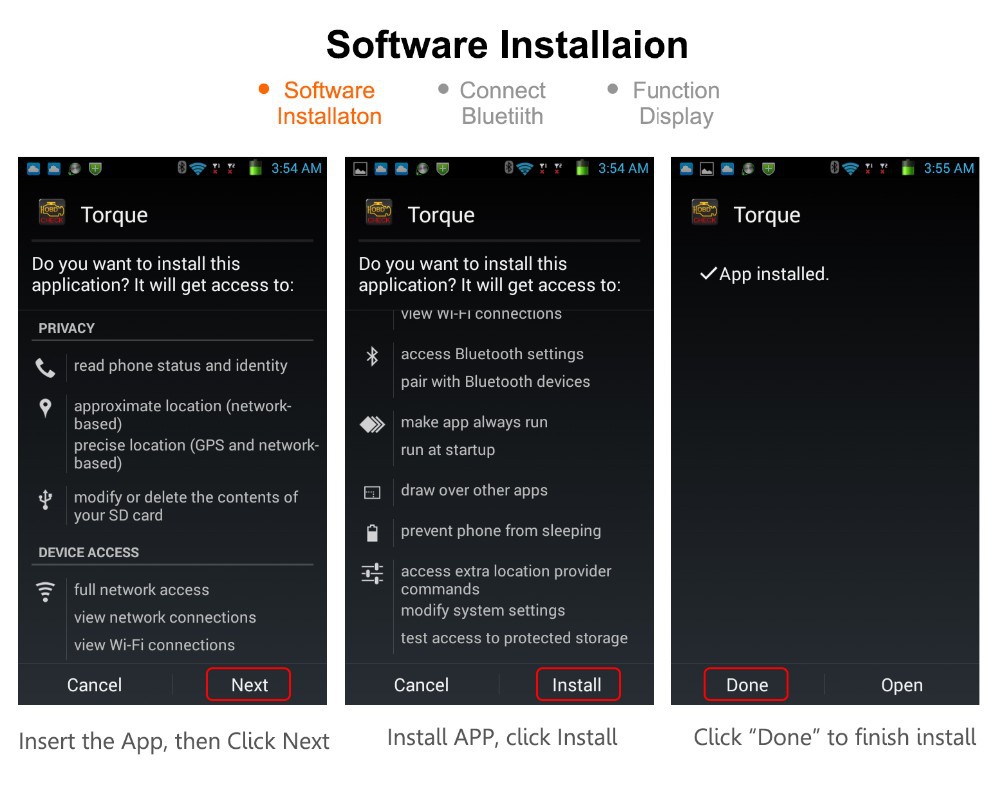

Software description:

Viecar 4.0 using self-developed Viecar software, more user-friendly interface designed to provide continuous software upgrades, and much powerful. Buying product, can obtain the right to use the software, no additional cost to purchase software. And one-year hardware warranty.

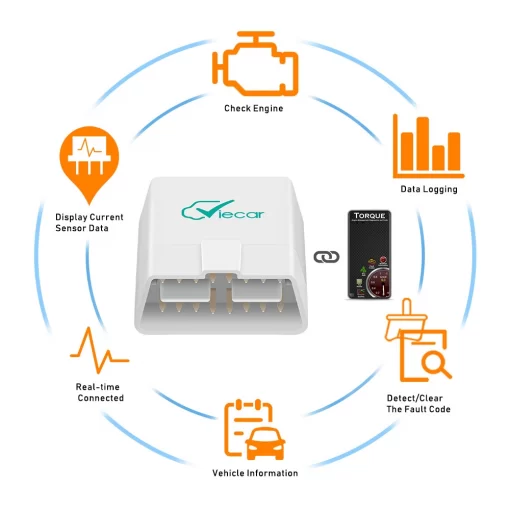

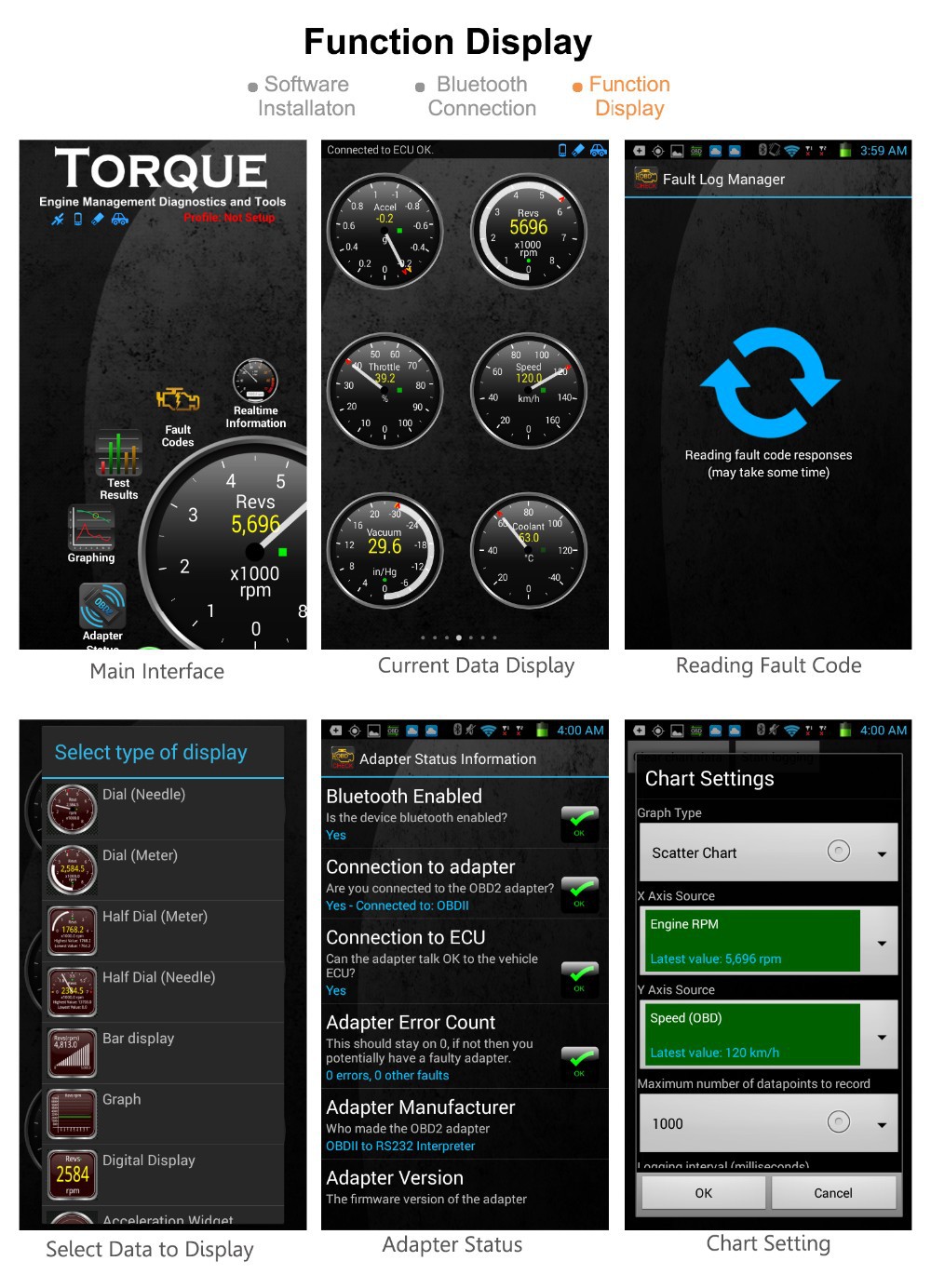

Software features:

Software can perform the following operations:

306 degrees full vehicle examination, the ultimate safety

Water temperature detection

Voltage Check Engine fault code Speeding remind

Fatigue driving reminder Intake air temperature Air flow rate

Absolute throttle position

Analysis of fuel consumption to save money Real-time fuel consumption analysis

With consumer tips

The remaining oil reminder Historical fuel consumption analysis Optimized driving behavior Acceleration Analysis

Idle analysis Jicha analysis History Analysis

Smart meters, spike original car Screen Projection
